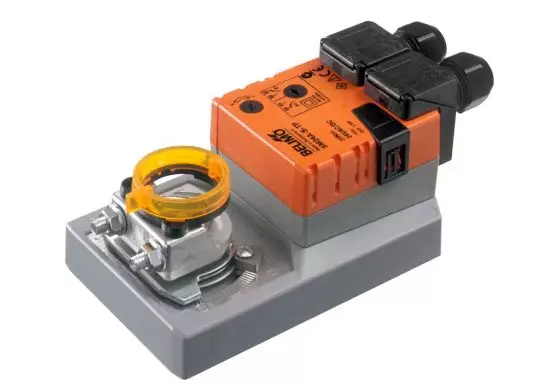

Belimo - damper actuator SM24A-S-TP - 20Nm
AVAILABLE
Processing time
~ 4 workingdays
(valid for DE, other countries may differ)
damper actuator
20 Nm,
150 s, 95°
AC/DC 24 V,
open-close, 3-Punkt,
1 x EPU
IP 54,
manual override arretierbar
control Umschalt- /closing contact 2)
auxiliary switch 0...100 % adjustable
Anschluss Schraubklemme mit Abdeckung IP54
direction of rotation wählbar (right/left)
rotation limitation mechanically integrated
axle drive universal clamp
switching capacity 1 mA...3(0.5)A, AC 250 V
| Hersteller-Artikel-Nummer | SM24A-S-TP |
|---|---|
| Weight | 2.00 kg |
| Torque | 20 Nm |
| Voltage | AC/DC 24 V |
| Flap Size | 4 m² |
| IP protection class | IP54 |
| Runtime | 150 sec |
| Series | SM |
