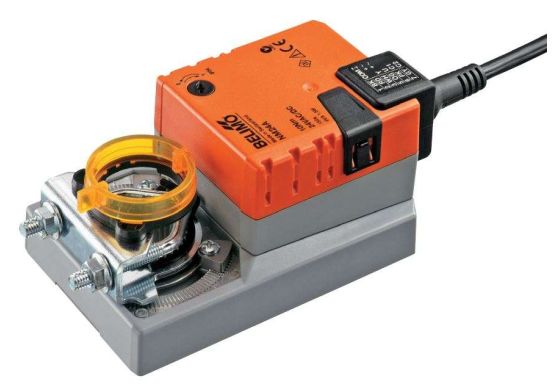

Belimo - damper actuator NM24A - 10Nm
AVAILABLE
Processing time
~ 4 workingdays
(valid for DE, other countries may differ)
damper actuator ,10 Nm,
150 s, 95°
AC/DC 24 V,
open-close, 3-Punkt
IP 54,
manual override push button lockable
control Changeover / closing contact
connection cablePVC 1 m
direction of rotation wählbar (right/left)
rotation limitation mechanically integrated
axle drive universal clamp
| Weight | 2.00 kg |
|---|---|
| Torque | 10 Nm |
| Voltage | AC/DC 24 V |
| Flap Size | 2 m² |
| IP protection class | IP54 |
| Runtime | 150 sec |
| Series | NM |
