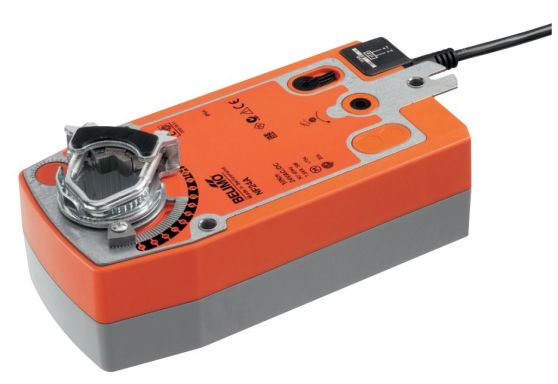

Belimo - damper actuator NFA fail-safeactuator - 10Nm
AVAILABLE
Processing time
~ 4 workingdays
(valid for DE, other countries may differ)
Predecessor: NF230A
rotary actuator fail-safe 10 Nm,
< 75 s, 95°
AC 24...240 V / DC 24...125 V,
open-close
IP 54,
manual override mit integr. position fixation
term spring < 20 s
control open-close mit closing contact
connection cable PVC 1 m
axle drive universal clamp
direction of rotation wählbar (right/left)
rotation limitation mechanically adjustable
(direkter replacement des NF230A)
| Weight | 2.00 kg |
|---|---|
| Torque | 10 Nm |
| Voltage | AC 24...240 V / DC 24...125 V |
| Flap Size | 2 m² |
| IP protection class | IP54 |
| Runtime | 75 sec |
| Series | NF |
| Predecessor | NF230A |
