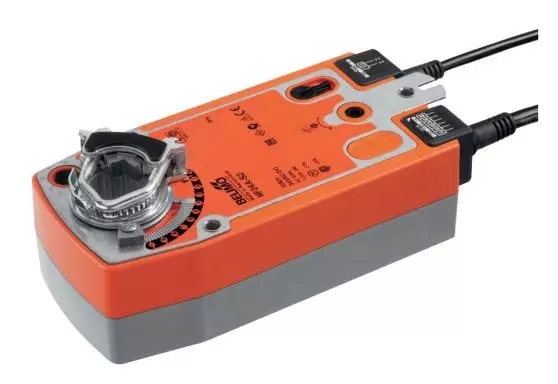

Belimo - damper actuator NF24A-S2 fail-safeactuator - 10Nm
AVAILABLE
Processing time
~ 4 workingdays
(valid for DE, other countries may differ)
damper actuator fail-safe10 Nm,
75 s, 95°
AC/DC 24 V,
open-close, 2 x EPU
IP 54, manual override mit integr. position fixation
term spring 20 s
control closing contact
connection cablePVC 1 m
auxiliary switch 2 x integriert switching capacity 1 mA...3(0.5)A, AC 250 V
axle drive universal clamp
direction of rotation wählbar (right/left)
rotation limitation mechanically adjustable
| Weight | 2.00 kg |
|---|---|
| Torque | 10 Nm |
| Voltage | AC/DC 24 V |
| Flap Size | 2 m² |
| IP protection class | IP54 |
| Runtime | 75 sec |
| Series | NF |
