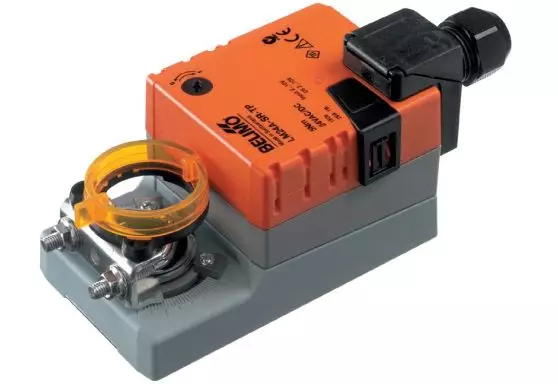

Belimo - damper actuator LM24A-SR-TP - 5Nm
AVAILABLE
Processing time
~ 4 workingdays
(valid for DE, other countries may differ)
damper actuator
5 Nm,
150 s, 95°
AC/DC 24 V,stetig
IP 54,
manual override arretierbar
control DC 0...10 V
workspace DC 2...10 V
position feedbackDC 2...10 V
Anschluss Schraubklemme mit Abdeckung IP54
direction of rotation wählbar (right/left)
rotation limitation mechanically integrated
| Weight | 2.00 kg |
|---|---|
| Torque | 5 Nm |
| Voltage | AC/DC 24 V |
| Flap Size | 1 m² |
| IP protection class | IP54 |
| Runtime | 150 sec |
| Series | LM |
