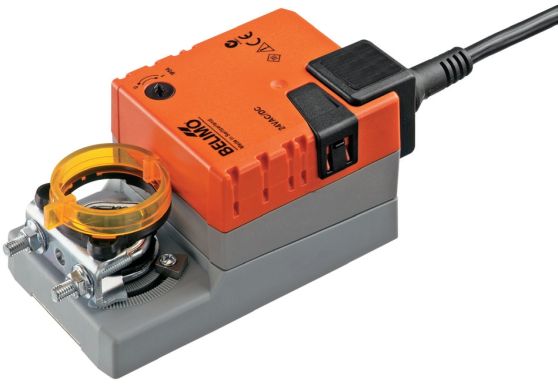

Belimo - damper actuator LM24A-S - 5Nm
AVAILABLE
Processing time
~ 4 workingdays
(valid for DE, other countries may differ)
damper actuator 5 Nm,
150 s, 95°
AC/DC 24 V,
open-close,3-Punkt,
1 x EPU
IP 54,
manual override arretierbar
control Changeover / closing contact
auxiliary switch integriert, potentialfrei, 0...100 % adjustable
connection cablePVC 1 m
direction of rotation wählbar (right/left)
rotation limitation mechanically integrated
axle drive universal clamp
switching capacity 1 mA...3(0.5)A, AC 250 V
| Hersteller-Artikel-Nummer | LM24A-S |
|---|---|
| Weight | 2.00 kg |
| Torque | 5 Nm |
| Voltage | AC/DC 24 V |
| Flap Size | 1 m² |
| IP protection class | IP54 |
| Runtime | 150 sec |
| Series | LM |
